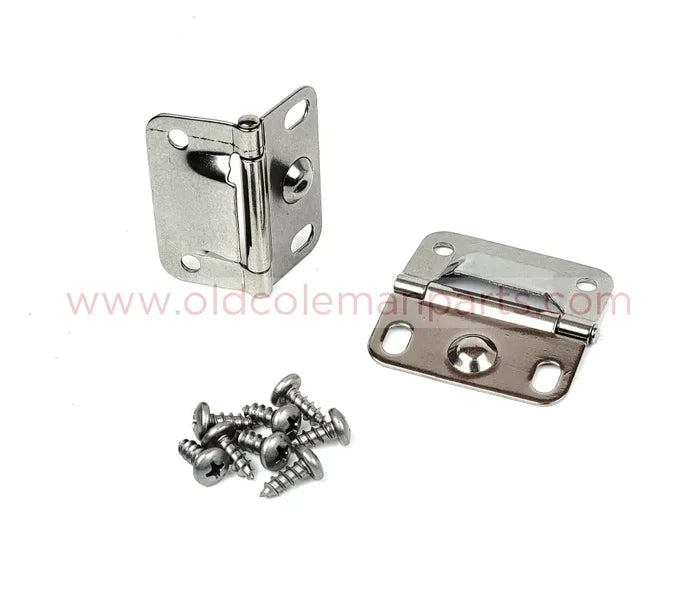

Genuine Coleman Stainless Steel Cooler Hinge Set - C059

New genuine Coleman hinge set with two stainless steel hinges and eight stainless steel mounting screws. These are a heavier-duty alternative to the plastic hinges while retaining the same size and mounting dimensions.

Fits Coleman Cooler Models

• 5226, 5227B, 5235, 5240, 5241, 5241A, 5242, 5245, and 5248

• 5250, 5255, 5256, 5256D, 5256E, 5256F, 5265, and 5277

• 5286, 5297, 5298, 5299, and 5299A

• 5848, 5850, 5856, 5862, 5863, 5871, 5872, 5873, 5874, 5884, 5887, and 5896

• 6040, 6050, 6154, 6155, 6200, 6201, 6240, 6250, 6251, and 6257

• 6260, 6262, 6263, 6270, 6273, 6281, 6286, 6296, 6297, and 6298

• 6498 and 6499

• May fit additional Coleman cooler models

Measurements

• Hinge size: 2 inches high × 2 1/4 inches wide

• Horizontal distance between screw-hole centers: 1 1/2 inches

• Vertical screw-hole spacing: Adjustable from 1 1/4 to 1 1/2 inches

Package Includes

• 2 stainless steel hinges

• 8 stainless steel screws

Most Coleman coolers have the model number marked on the bottom. If you cannot find it, use our Parts Diagram Page to visually identify your cooler. You can also browse our available Coleman cooler parts.

Previous Coleman part numbers include 6262-1141, 5256-1851, and 5283-1141. Also known as part number 3000005301.
